Brio<sup>e</sup> 17

Brioe 17 2026

  • 5.4 m (17’-7”)
  • 619 kg (1365 lb)
  • ~25 HP (~18.6 kW, 48V)
  • 7 persons
Brioe 17 2026 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure
Top-view images shown may not accurately represent the final product or may include non-standard options.

Available electric engines

The Brio Series offers 3 different engine choices:

Speed and Autonomy

Speed
EngineAt 100%
of power		At 50%
of power		At 25%
of power
Avator 20e 5.2 mph / 8.4 kph 4.2 mph / 6.8 kph 3.6 mph / 5.8 kph
Avator 35e 6.6 mph / 10.6 kph 5.3 mph / 8.5 kph 4.3 mph / 6.9 kph
Cruise 3.0 RL 5.2 mph / 8.4 kph 4.2 mph / 6.8 kph 3.6 mph / 5.8 kph

Speed is based on real tests and the Mercury® or Torqeedo algorithm.
These specifications may vary depending on conditions and pontoon model.

Autonomy: Avator 20e
Battery
Configuration		At 100%
of power		At 50%
of power		At 25%
of power
2X 48V Lithium 2.3kWh 1h36 3h06 6h30
4X 48V Lithium 2.3kWh 3h12 6h30 14h12
Autonomy: Avator 35e
Battery
Configuration		At 100%
of power		At 50%
of power		At 25%
of power
2X 48V Lithium 2.3kWh 1h 2h12 4h13
4X 48V Lithium 2.3kWh 2h 4h36 9h12
Autonomy: Cruise 3.0 RL
Battery
Configuration		At 100%
of power		At 50%
of power		At 25%
of power
2 acid batteries 35 min 1h40 3h15
4 acid batteries 1h25 3h40 6h40
1X 24V Torqeedo 1h45 3h25 6h30
2X 24V Torqeedo 3h15 6h40 13h40

Battery life is based on real tests and the Mercury® or Torqeedo algorithm.
These specifications may vary depending on conditions and pontoon model.

Charge time: Avator 20e and 35e
BatteryTime
2X 48V Lithium 2.3kWh 20 hours
4X 48V Lithium 2.3kWh 40 hours

Our advantages

  • Battery switch allowing the onboard power shut down
    Battery switch allowing the onboard power shut down
  • Optional Concert package including controls for Jensen Stereo, horn, docking lights, and in-dash USB
    Optional Concert package including controls for Jensen Stereo, horn, docking lights, and in-dash USB
  • Mercury® Avator® engine control
    Mercury® Avator® engine control
  • Mercury® control center for speed, charging and more available on Avator® electric engines
    Mercury® control center for speed, charging and more available on Avator® electric engines
  • Rotomolded helm console with Concert package
    Rotomolded helm console with Concert package
  • Driver console with optional Concert package
    Driver console with optional Concert package
  • Front lounger
    Front lounger
  • In-floor storage for propulsion batteries
    In-floor storage for propulsion batteries
  • Storage under all lounges
    Storage under all lounges
  • Helm storage with net
    Helm storage with net

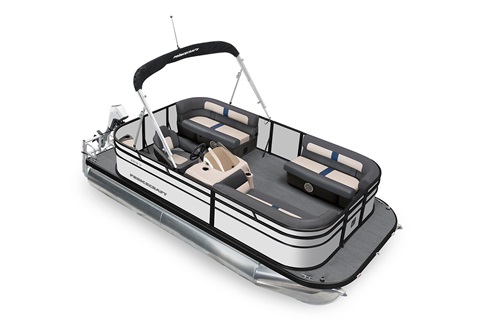

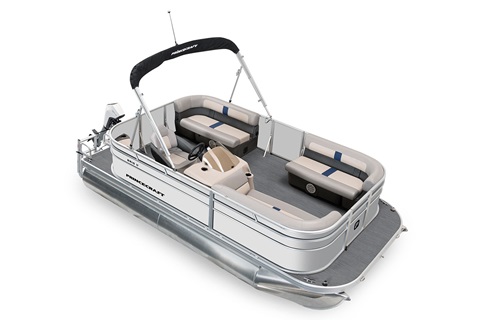

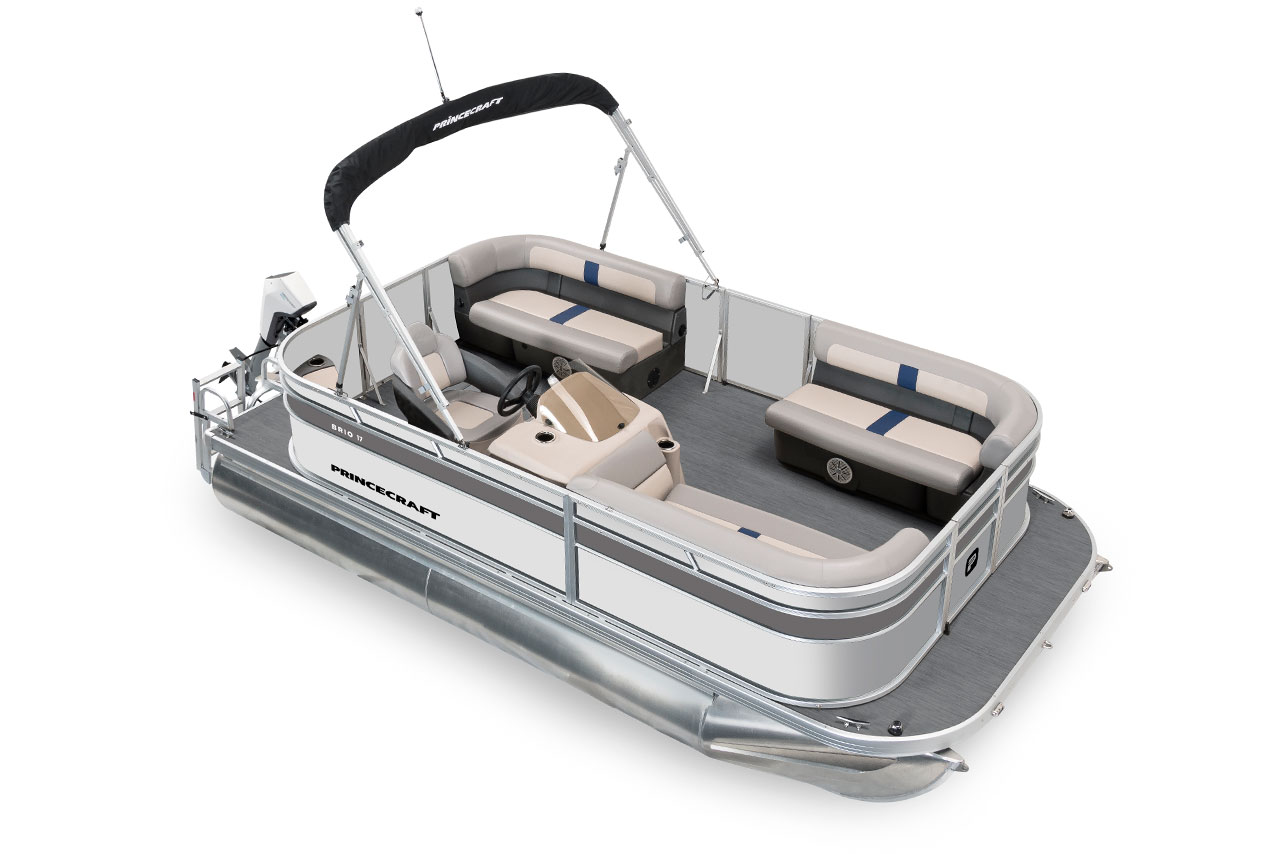

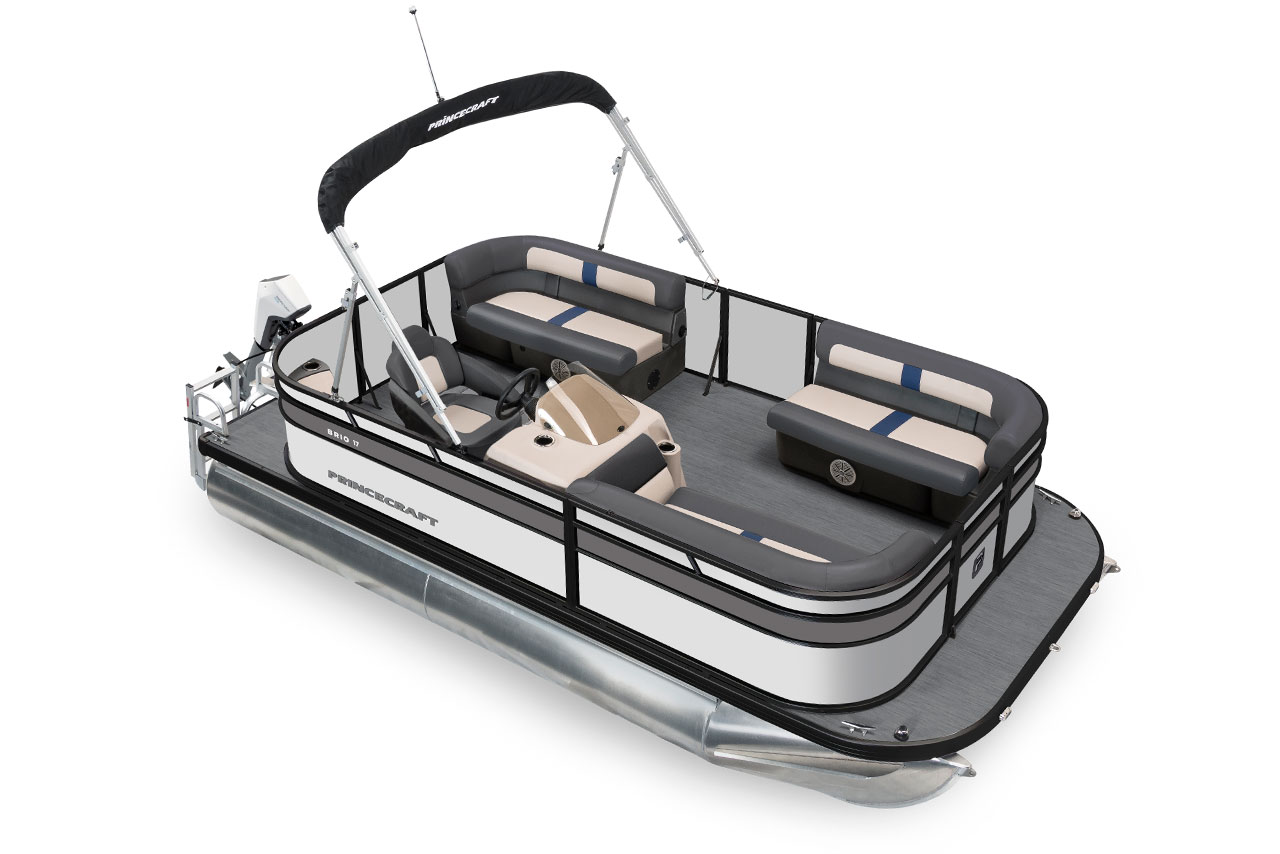

Edition and color choices

Features and options

  • 5052-H36 marine grade aluminum alloy
  • 2 1/2" heavy-duty extruded Z-aluminum cross channels
  • Powder coated 1 1/4" aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (23")
  • V-shaped aluminum engine pod
  • Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded casting corners
  • Walk-thru rear gate with lift and lock hinges
  • Walk-thru bow gate with lift and lock hinges
  • Port side gate with lift and lock hinges (24")
  • Stern swim platform
  • Stainless steel bow eye
  • 4- 6" chromed deck cleats

  • Rotomolded helm console
  • Helm storage with net
  • Molded dash panel with black inserts and lighted switches
  • Push on/off console courtesy light

  • Remote throttle with integrated display (indicating battery voltage, battery charge, speed, remaining range at current speed, and input power consumption)
  • Voltmeter for accessory battery

  • Plush and heavy weight upholstery
  • Rotocast furniture bases and backs
  • Folding swivel driver seat
  • 1 stern storage module
  • 1 chaise lounge
  • Storage under all lounges

  • Black bimini top
  • Bimini top latches and traveling struts
  • Factory installed snap fasteners for canvas camper enclosures and protective cover options

  • Onboard battery chargers and boxes
  • Stern boarding ladder
  • Cup holders
  • Navigation lights
  • Transducer mounting bracket
  • Battery box

  • Overall length : 5.4 m (17’-7”)
  • Deck length : 4.9 m (16'-1")
  • Beam : 2.5 m (8'-1")
  • Pontoon length : 5.0 m (16’-4”)
  • Pontoon diameter : 0.58 m (23”)
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 619 kg (1365 lb)

  • Maximum HP capacity : ~25 HP (~18.6 kW, 48V)
  • Maximum weight capacity : 744 kg (1640 lb)
  • Maximum weight person capacity : 375 kg ( 827 lb)
  • Maximum person capacity : 5

  • Maximum HP capacity : ~25 HP (~18.6 kW, 48V)
  • Maximum weight capacity : 744 kg (1640 lb)
  • Maximum weight person capacity : 462 kg (1018 lb)
  • Maximum person capacity : 7

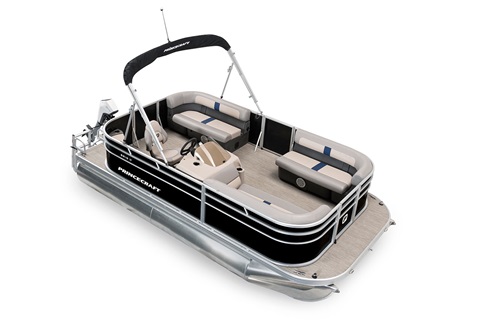

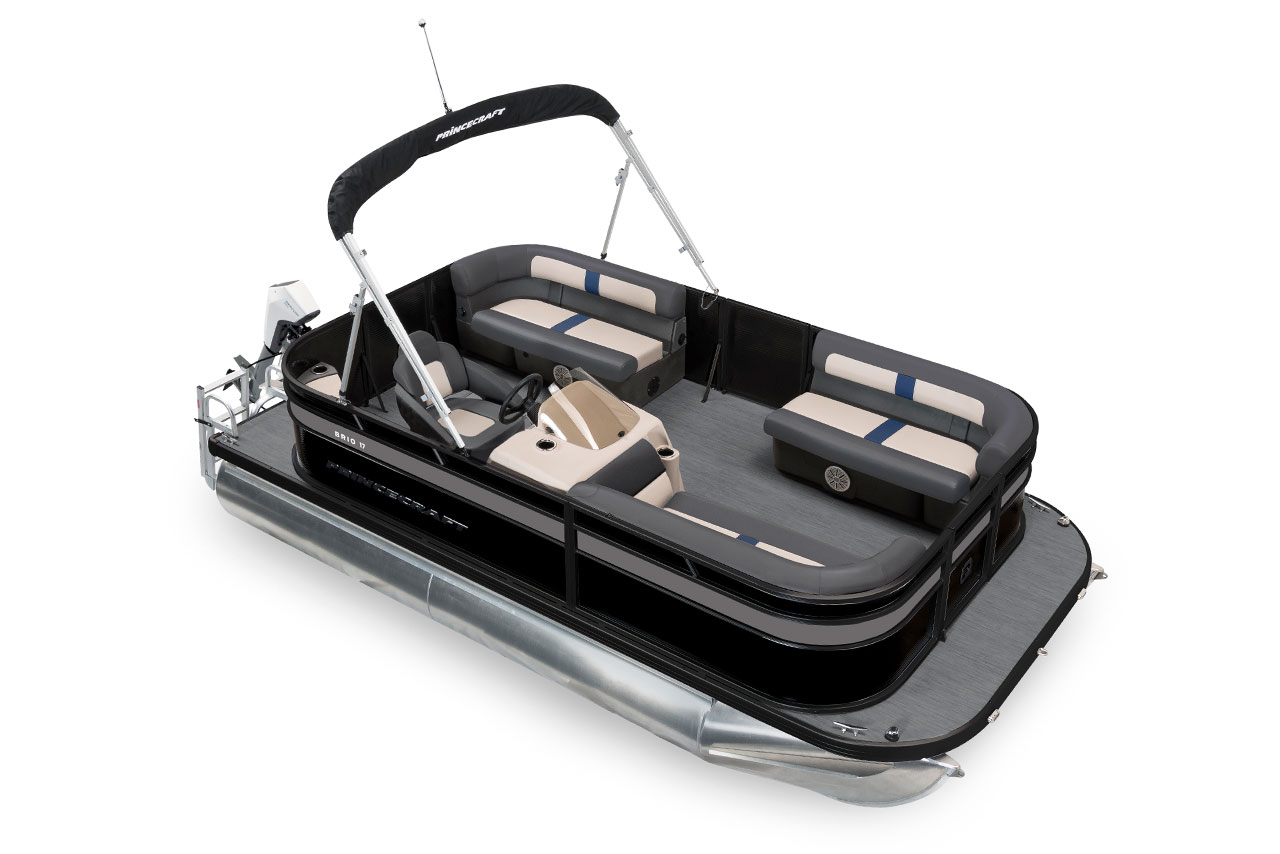

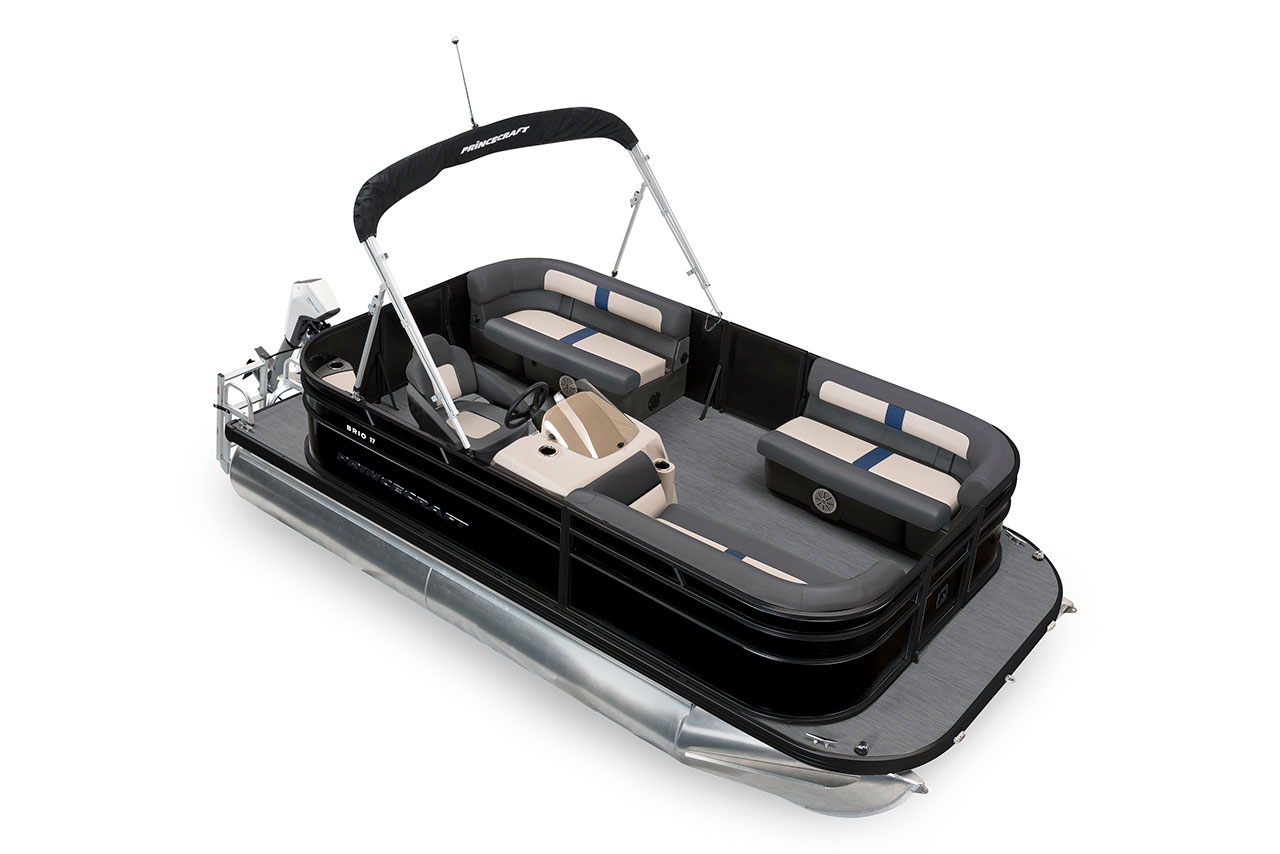

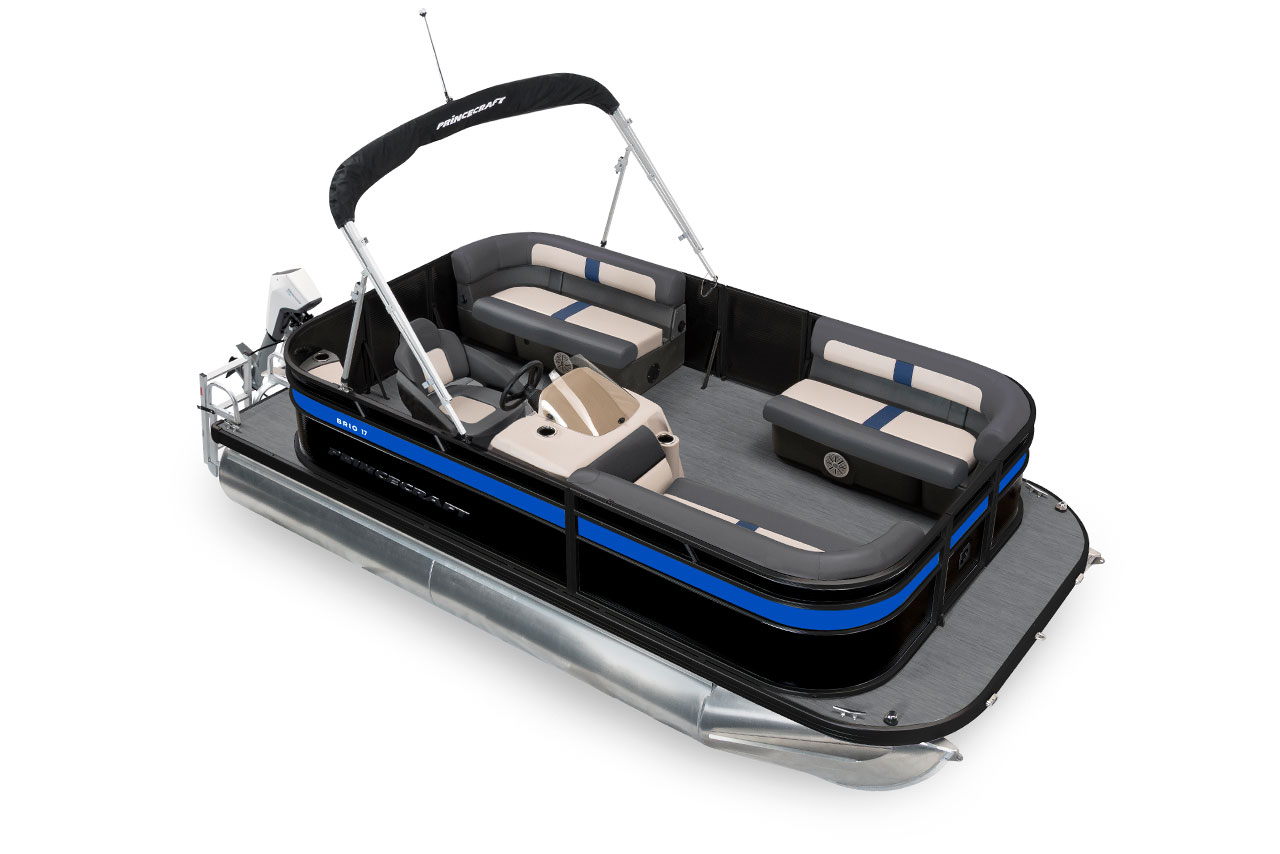

  • Black Edition includes: Black painted railing, black anodized deck bumper, darker upholstery, deluxe captain's chair, 3D Princecraft® black chrome logo on both sides and front door

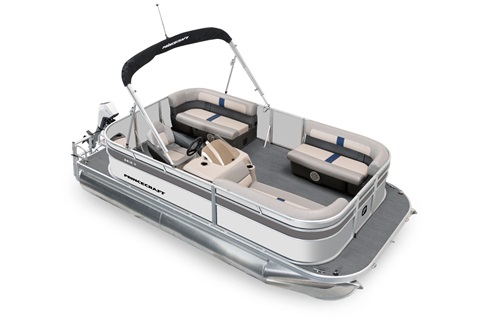

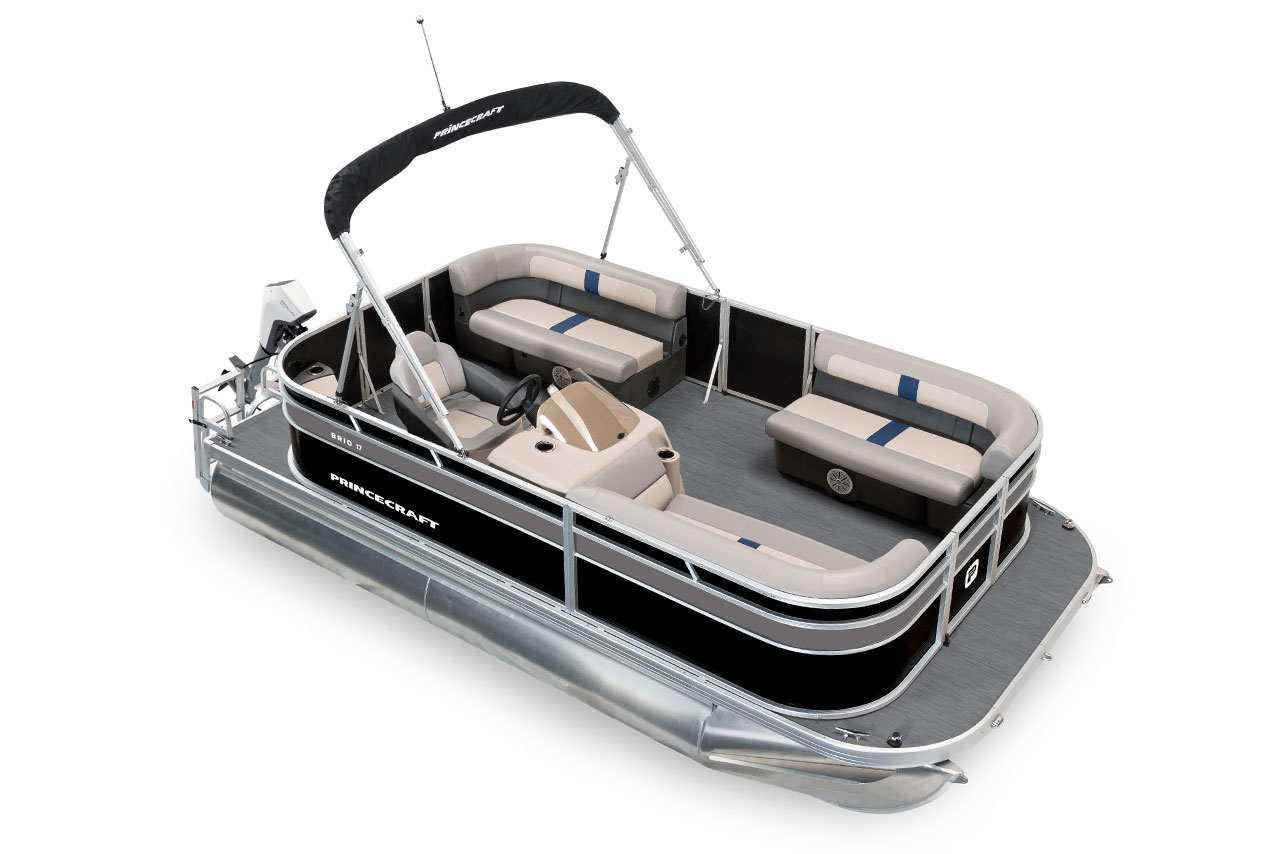

  • Graphic package includes: Grey metallic stripe all around the pontoon

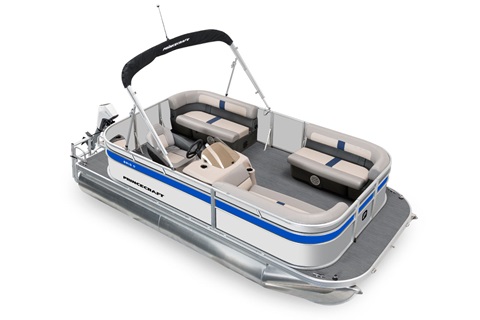

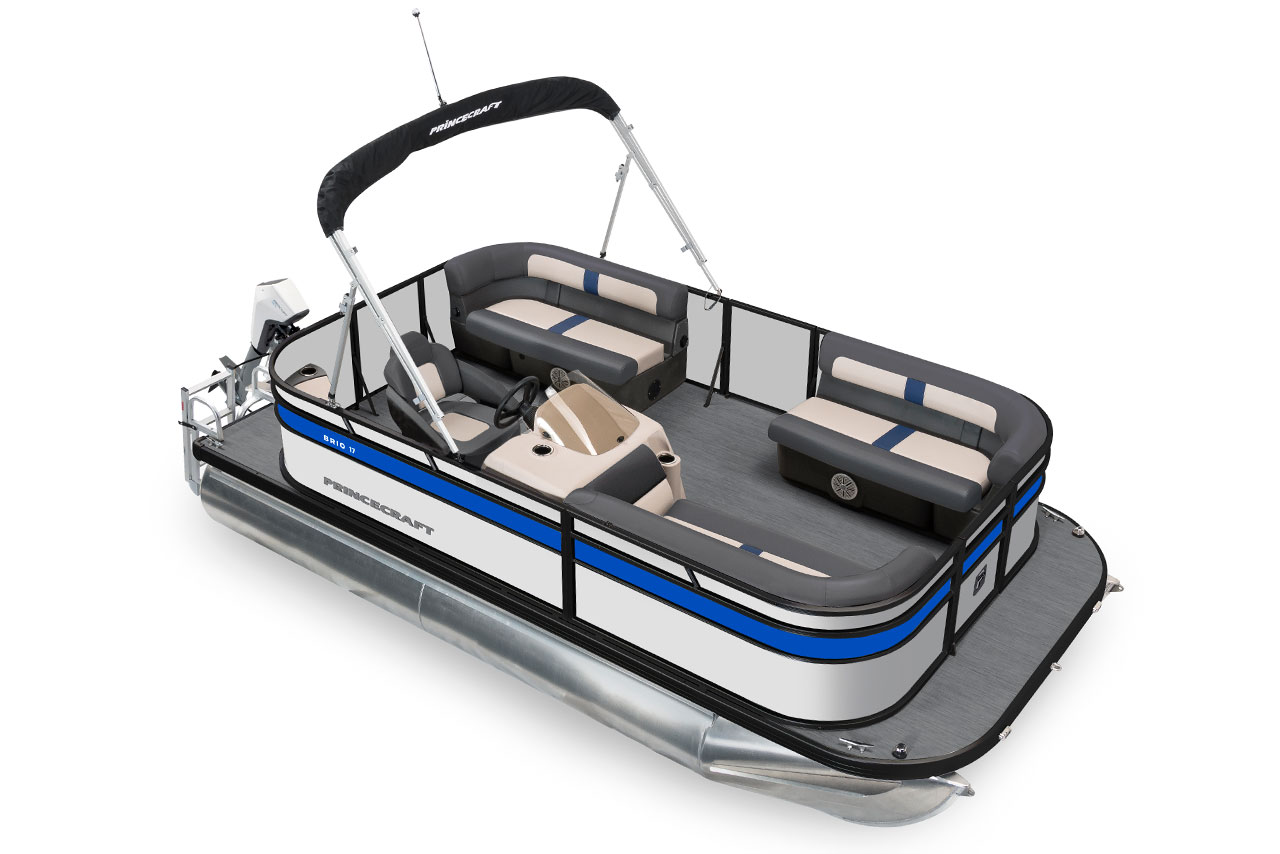

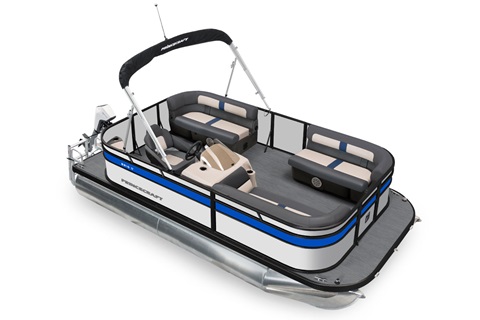

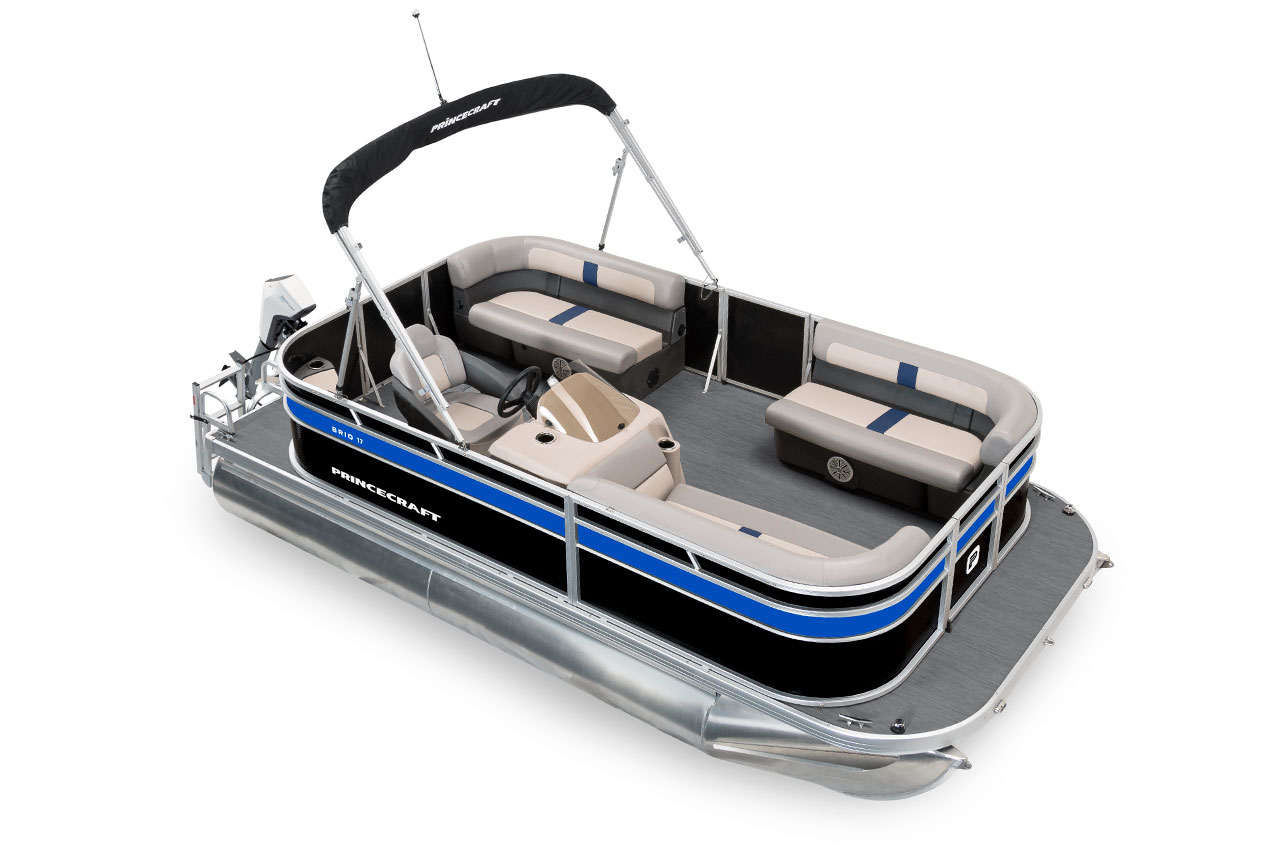

  • Graphic package includes: Blue metallic stripe all around the pontoon

  • Steering system includes: trim system, tilt steering wheel and driver slider seat
  • Concert Package includes: 160-watts AM/FM/Bluetooth Jensen® radio with 2 speakers, speedometer, tachometer, horn, LED docking lights, in-dash USB plug and smoked windscreen

  • Select beige / grey vinyl floor covering (teak supreme solid)…UE
  • Select beige / grey vinyl floor covering with black lines (teak supreme 2)…UE

  • 2 Mercury® Avator 48V 2.3 KWH batteries with charger required with the 20e and 35e Avator engines
  • 4 Mercury® Avator 48V 2.3 KWH batteries with charger for 20e and 35e Avator engines

  • Pontoon rail boat fender hangers /pair
  • Removable privacy enclosure installed in the bimini top
  • Captain's chair with swivel…UE
  • Bow rectangular beige pedestal mount removable table with cup holders

  • Stern storage conversion kit into an aerated livewell and support for 3 rod holders

  • Protective cover (black)
  • Double bimini top includes stern bimini canvas (black)
  • Full camper enclosure includes stern bimini canvas (black)

  • Galvanized spare wheel 20.5 x 8" x 10" C and bracket
