23 RL
Vogue
®
23 RL
2025
Enter your ZIP / Postal code
to see our prices and promotions
7.3 m
(23’-11”)
1044 kg
(2302 lb)
175 HP
(130.5 kW)
12
persons
Vogue
®
23 RL
2025
Go to section
Boat overview
Advantages
Gallery
Features and options
Configure
Request a quote
Picture 1
Picture 2
Previous
Next
Storage compartment
Livewell
Open space storage compartment
Rod storage compartment
Fuel tank
Ice box
Privacy enclosure
Our advantages

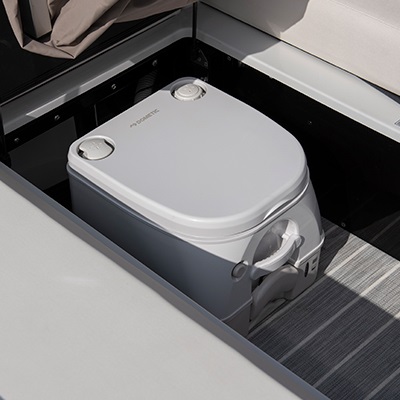

Optional chemical head with holding tank and pump out system

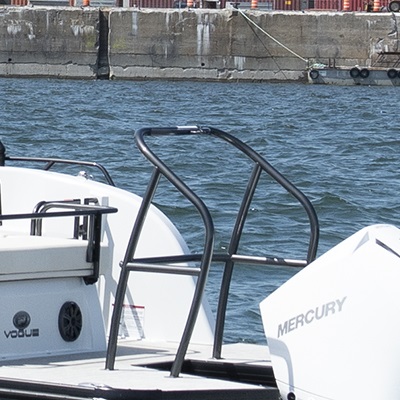

Optional black stainless steel waterski tow bar

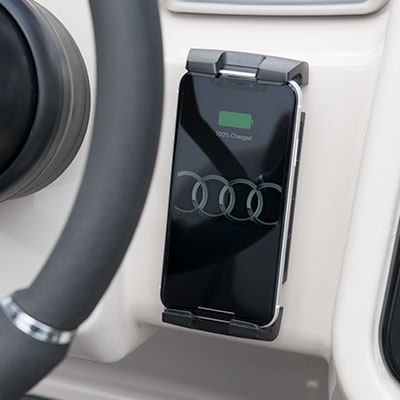

Wireless smart phone charger integrated to the console
Driver helm shown with optional Simrad
®
NSX9 multifunctions and high power stereo system screen

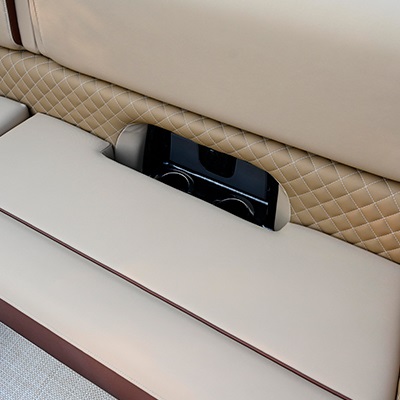

Lounger cup holders with USB port integrated into furniture
LED docking lights

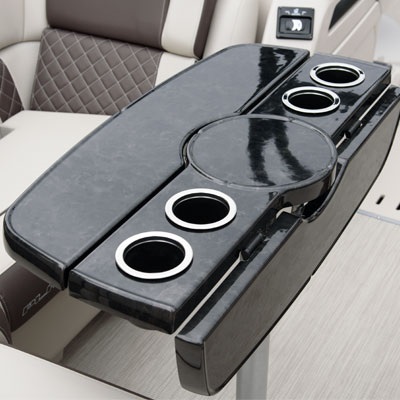

Black folding pedestal mount removable table with cup holders

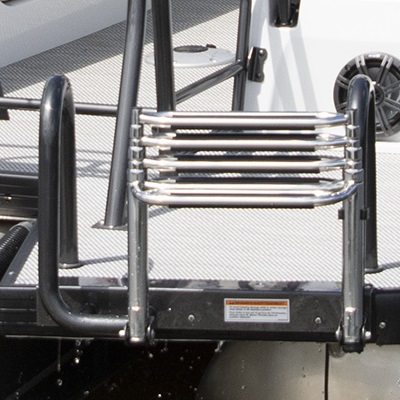

Large stern telescopic black stainless steel boarding ladder

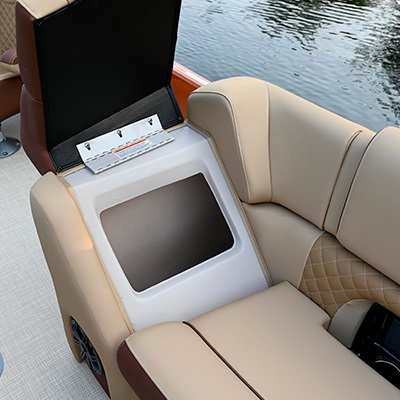

Storage in chaise lounges' reclined unit

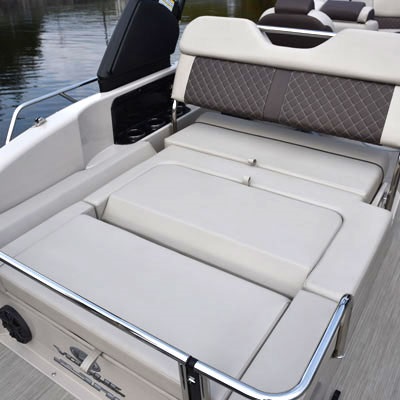

RL Configuration
View it in action
*
Walkaround video
*
360° Views
*
*
Not available for this specific model, a similar model is shown.
The displayed image or video may not represent the final product.
Previous
Next
Features and options
Features
Specifications
Options
CONSTRUCTION FEATURES
5052-H36 marine grade aluminum alloy
2 1/2" heavy-duty extruded Z-aluminum cross channels
NMMA & Transport Canada certified
APS style side panels
Sealed pontoon bulkheads with top mounted air plug (25")
V-shaped aluminum engine pod
Sensation grey vinyl (Sensation Wicker)
Extruded aluminum full-length pontoon keels
Extruded aluminum full-length pontoon skirting
Stern molded corners
Aluminum molded casting corners
Walk-thru rear gate with lift and lock hinges
Walk-thru bow gate with lift and lock hinges
Port side gate with lift and lock hinges (20")
Extra large stern swim platform
Bow fiberglass molded section with integrated LED lighting
Stainless steel bow eye
4 stainless steel recessed cleats
Rear gate holder
Permanent gas tank of 110 L / 29 U.S. gal.
Sport Configuration: bow central half 3rd log, permanent gas tank of 102 L (27 U.S. gal.), lifting strakes, reinforced noses and under-deck spray shield
HELM
Automotive style raised fiberglass helm
Padded footrest with Princecraft logo
SeaStar
®
hydraulic steering system
Molded dash panel with black inserts and lighted switches
Sport tilt steering mechanism
AM/FM/Bluetooth KMC100 Kicker Stereo with integrated USB plug and auxiliary input (1/8") in helm
6 waterproof speakers
Electric horn
Wireless smartphone charger integrated to the console
12V outlet
USB plug
Push on/off console courtesy light
LED lighting under driver helm
Quick release smoked windscreen
INSTRUMENTATION
SIMRAD
®
NSX7 multifunction touch screen with instrumentation display, GPS functions and sonar
FURNITURE
Ultra plush and heavy weight upholstery
Rotocast furniture bases and backs
Reclining passenger captain seat on slide and swivel
Speaker unit including USB ports and 2 cup holders
Lounger cup holders with USB ports
Sport Edition (color match accent) including premium upholstery textured vinyl, LED lighting on floor, bimini top, pontoon logs, speakers, and fixed cup holders
RL design including multi-positions seat module, integrated cooler, privacy enclosure, and stainless steel safety railing
Reclining captain's chair on slide and swivel
2 chaise lounges
Storage in chaise lounges' reclined unit
Integrated trash storage
1 storage pouch
Storage under all lounges
Pop-up privacy enclosure
Black folding pedestal mount snack table with cup holder
TOPS
High-end black bimini top with black finish structure
Quick release bimini top latches and traveling struts
Factory installed snap fasteners for canvas camper enclosures and protective cover options
OTHER STANDARD FEATURES
Large stern telescopic stainless steel boarding ladder
Cup holders
Bow black chrome corner light housings
LED docking lights
Navigation lights
LED floor mood lighting
Chrome finish 3D logo
Transducer mounting brackets
Preinstalled fender hangers (3 on each side) with 2 hanger clips
Standard stainless steel propeller (on 175 HP engines and up)
Battery box
Battery switch: allows onboard power shut down
GENERAL SPECIFICATIONS
Overall length : 7.3 m (23’-11”)
Deck length : 7.2 m (23’-6”)
Beam : 2.6 m (8'-6")
Pontoon length : 6.8 m (22’-4”)
Pontoon diameter : 0.64 m (25”)
Pontoon aluminum thickness : 2.0 mm (.080")
Approximate weight : 1173 kg (2637 lb)
MANUFACTURER'S RECOMMENDATIONS (CANADA)
Maximum HP capacity : 175 HP (130.5 kW)
Maximum weight capacity : 1044 kg (2302 lb)
Maximum weight person capacity : 750 kg (1653 lb)
Maximum person capacity : 10
MANUFACTURER'S RECOMMENDATIONS (CANADA) (for pontoons with Sport Configuration)
Approximate weight : 1173 kg (2637 lb)
Maximum HP capacity : 175 HP (130.5 kW)
Maximum weight capacity : 1044 kg (2302 lb)
Maximum weight person capacity : 750 kg (1653 lb)
Maximum person capacity : 10
MANUFACTURER'S RECOMMENDATIONS (CANADA) (for pontoons with Performance Configuration)
Approximate weight : 1297 kg (2859 lb)
Maximum HP capacity : 250 HP (186 kW)
Maximum weight capacity : 1111 kg (2449 lb)
Maximum weight person capacity : 742 kg (1635 lb)
Maximum person capacity : 12
NMMA (USA)
Maximum HP capacity : 175 HP (130.5 kW)
Maximum weight capacity : 1044 kg (2302 lb)
Maximum weight person capacity : 744 kg (1640 lb)
Maximum person capacity : 12
NMMA (USA) (for pontoons with Sport Configuration)
Approximate weight : 1173 kg (2637 lb)
Maximum HP capacity : 130.5 kW (175 HP)
Maximum weight capacity : 1044 kg (2302 lb)
Maximum weight person capacity : 744 kg (1640 lb)
Maximum person capacity : 12
NMMA (USA) (for pontoons with Performance Configuration)
Poids approximatif : 1297 kg (2859 lb)
Maximum HP capacity : 186 kW (250 HP)
Maximum weight capacity : 1111 kg (2449 lb)
Maximum weight person capacity : 742 kg (1635 lb)
Maximum person capacity : 12
GAS TANK
Built-in : ≤ 110 L (29 U.S. gal.)
Look and Configuration
Vogue
®
domed decal package (black chrome)…UE
Platinum Edition including, Premium Cognac and black upholstery textured vinyl, platinum embrodery details and Infinity brown vinyl floor covering (Sea grass)
Floor covering
Infinity grey vinyl floor covering with white lines (better tan teak II)…UE
Infinity beige vinyl with white lines floor covering (Better Tan Teak)…UE
Propulsion and autonomy
Mercury
®
power steering with tilt wheel (for 200 up to 300 HP)…UE
Sideshift: Bow thruster (offered on all our configurations)
Sideshift: Bow thruster (Performance configuration)
Additional battery bank system including charger (ProSport 6) and battery switch (175 HP)
Comfort and entertainment
Electric powered wakeboard tower and bimini top (black)
Stainless steel waterski tow bar (black)
2 stainless steel fender supports
2 additional fender hanger clips (Vogue
®
only)
Head with holding tank & pump out system (9.8 l/ 2.6 U.S. gal.)
Removable bow seat
Folding rectangular pedestal mount removable table with cup holders
Barbecue (BBQ) gas grill
Console and electronic
Premium High Power stereo system…UE (including touchscreen Simrad
®
NSX9 with digital media center, 7 high performance speakers, VesselView link, downscan imaging, 10 inches subwoofer and amplifier)…UE
Wakeboard tower speakers (must be ordered with wake tower package plus premium high power/sub audio system)
Active trim: automatic trim system
Underwater lighting (2 lights)
Tops and canvas
Protective cover (black)
Protective cover available with optional wakeboard tower package (black)
Double bimini top excluding stern bimini canvas and including rear extension (black)
Double bimini top available with wakeboard tower package excluding stern bimini canvas and including rear extension (black)
Full camper enclosure excluding stern bimini canvas (black)
Full camper enclosure with privacy curtains excluding stern bimini canvas (black)
Full camper enclosure available with wakeboard tower package and excluding stern bimini canvas (black)
Full camper enclosure with privacy curtains available with wakeboard tower package and excluding stern bimini canvas (black)
Miscellaneous
Stainless steel propeller model Enertia 14,7 x 16 (for Speed & Sport configuration with 150 HP only)…UE
Trailers
Conversion kit for 3-log models
Galvanized spare wheel 5.30 x 12" C with 5 lugs and bracket
Galvanized spare wheel 20.5 x 8" x 10" C and bracket
ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
