Home
/
Pontoon Boats
/
Vectra
®
Series
/ Vectra
®
23 RL
Vectra
®
23 RL
2025
Enter your ZIP / Postal code
to see our prices and promotions
7.2 m
(23’-6”)
1036 kg
(2285 lb.)
150 HP
(112 kW)
12
persons
Vectra
®
23 RL
2025
Go to section
Boat overview
Advantages
Gallery
Features and options
Configure
Request a quote
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5
Picture 6
Picture 7
Picture 8
Picture 9
Previous
Next
Storage compartment
Livewell
Open space storage compartment
Rod storage compartment
Fuel tank
Ice box
Privacy enclosure
Our advantages

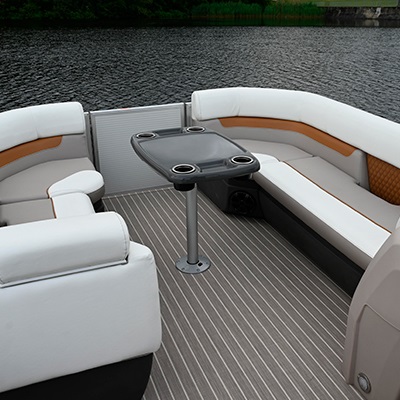

Bow snack table (Mood Package)

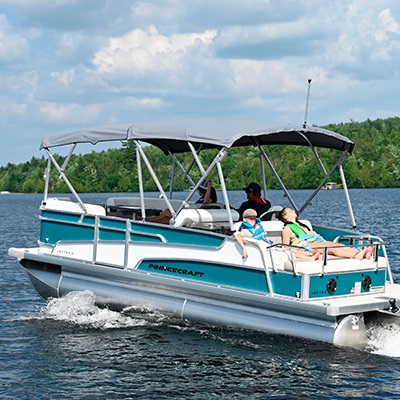

Optional double bimini top

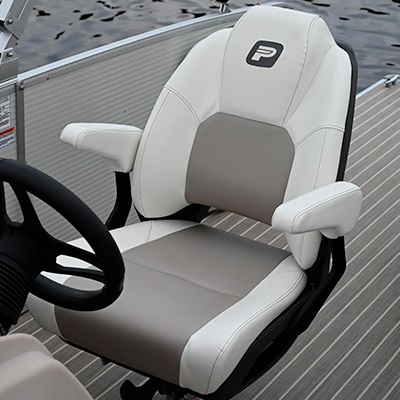

Optional deluxe driver seat

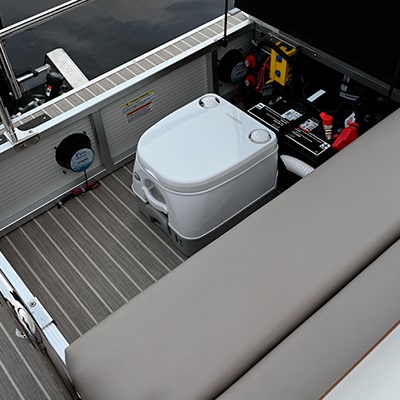

Optional head Package including holding tank with a pump out system
Removable ski pylon

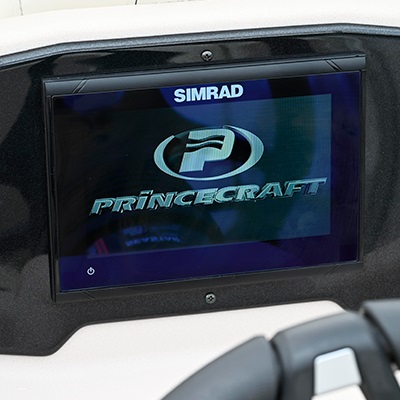

Optional multifunctions Simrad
®
NSX7 screen with instrumentation
Rotomolded helm console

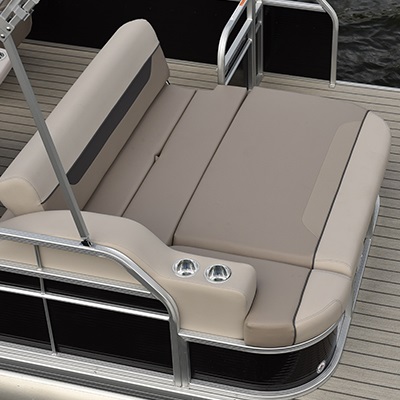

Rear large lounger
Lounging area with 2-position adjustable backrest

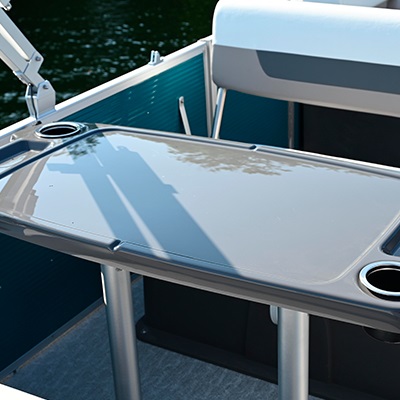

Large snack table
View it in action
*
Walkaround video
*
360° Views
*
*
Not available for this specific model, a similar model is shown.
The displayed image or video may not represent the final product.
Previous
Next
Features and options
Features
Specifications
Options
CONSTRUCTION FEATURES
5052-H36 marine grade aluminum alloy
2 1/2" heavy-duty extruded Z-aluminum cross channels
NMMA & Transport Canada certified
1 1/4" anodized aluminum rails
Sealed pontoon bulkheads with top mounted air plug (25")
V-shaped aluminum engine pod
Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
Extruded aluminum full-length pontoon keels
Extruded aluminum full-length pontoon skirting
Stern molded corners
Composite molded casting corners
Walk-thru rear gate with lift and lock hinges
Walk-thru bow gate with lift and lock hinges
Port side gate with lift and lock hinges (24")
Stern swim platform
Stainless steel bow eye
4- 6" chromed deck cleats
Rear gate holder
Permanent gas tank of 110 L / 29 U.S. gal.
HELM
Rotomolded helm console with acrylic insertions
Molded dash panel with black inserts and lighted switches
160-watt AM/FM/Bluetooth Jensen Stereo
4 waterproof speakers
Electric horn
12V outlet
USB plug
Console courtesy light
INSTRUMENTATION
Tachometer, speedometer, fuel and trim gauges
FURNITURE
Plush and heavy weight upholstery
Rotocast furniture bases and backs
Swivel captain's chair
Passenger captain seat
RL design including captain passenger seat, multi-positions seat module, sundeck with 2 position adjustable backrest,, large snack table, and storage under all seats
Rear padded sundeck
2 chaise lounges
Storage in chaise lounges' reclined unit
Storage under all lounges
TOPS
Dark grey bimini top
Bimini top latches and traveling struts
Factory installed snap fasteners for canvas camper enclosures and protective cover options
OTHER STANDARD FEATURES
Stern telescopic stainless steel boarding ladder
Cup holders
Navigation lights
Transducer mounting brackets
Standard stainless steel propeller (on 175 HP engines and up)
Battery box
GENERAL SPECIFICATIONS
Overall length : 7.2 m (23’-6”)
Deck length : 6.7 m (22'-0")
Beam : 2.6 m (8'-5")
Pontoon length : 6.8 m (22’-4”)
Pontoon diameter : 0.64 m (25”)
Pontoon aluminum thickness : 2.0 mm (.080")
Approximate weight : 919 kg (2027 lb)
MANUFACTURER'S RECOMMENDATIONS (CANADA)
Maximum HP capacity : 150 HP (112 kW)
Maximum weight capacity : 1036 kg (2285 lb)
Maximum weight person capacity : 736 kg (1623 lb)
Maximum person capacity : 12
MANUFACTURER'S RECOMMENDATIONS (CANADA) (for pontoons with Sport Configuration)
Approximate weight : 1069 kg (2357 lb)
Maximum HP capacity : 175 HP (130.5 kW)
Maximum weight capacity : 1109 kg (2445 lb)
Maximum weight person capacity : 805 kg (1775 lb)
Maximum person capacity : 13
MANUFACTURER'S RECOMMENDATIONS (CANADA) (for pontoons with Performance Configuration)
Approximate weight : 1170 kg (2579 lb)
Maximum HP capacity : 200 HP (149 kW)
Maximum weight capacity : 1088 kg (2398 lb)
Maximum weight person capacity : 742 kg (1635 lb)
Maximum person capacity : 12
NMMA (USA)
Maximum HP capacity : 150 HP (112 kW)
Maximum weight capacity : 1036 kg (2285 lb)
Maximum weight person capacity : 736 kg (1623 lb)
Maximum person capacity : 12
NMMA (USA) (for pontoons with Sport Configuration)
Approximate weight : 1069 kg (2357 lb)
Maximum HP capacity : 130.5 kW (175 HP)
Maximum weight capacity : 1109 kg (2445 lb)
Maximum weight person capacity : 805 kg (1775 lb)
Maximum person capacity : 13
NMMA (USA) (for pontoons with Performance Configuration)
Poids approximatif : 1170 kg (2579 lb)
Maximum HP capacity : 149 kW (200 HP)
Maximum weight capacity : 1088 kg (2398 lb)
Maximum weight person capacity : 742 kg (1635 lb)
Maximum person capacity : 12
GAS TANK
Built-in : ≤ 102L (27 U.S. gal.)
Look and Configuration
Traditional Edition including 3D Princecraft
®
black chrome logo on both sides and front door, deluxe driver seat (and if applicable passenger captain's chair and slider), LED light under driver console and furniture, superior steering wheel, docking lights and colour accent in the standard upholstery only
Nautical Blue Edition including 3D Princecraft
®
black chrome logo on both sides and front door, Nautical blue exterior colour accent, deluxe driver seat (and if applicable passenger captain's chair and slider), LED lighting under driver console and furniture, superior steering wheel, docking lights and colour accent in the standard upholstery only
Onyx White Editionincluding 3D Princecraft
®
black chrome logo on both sides and front door, onyx white exterior colour accent, deluxe driver seat (and if applicable passenger captain's chair and slider), LED lighting under driver console and furniture, superior steering wheel, docking lights and colour accent in the standard upholstery only
Copper Special Edition including 3D Princecraft
®
black chrome logo on both sides and front door, copper exterior colour accent, deluxe driver seat (also, if applicable passenger captain's chair and slider), LED lighting under driver console and furniture, superior steering wheel, docking lights, colour accent in the standard upholstery only and Infinity beige/grey vinyl floor covering with white lines
Dinette Package : Flip flop seat with integrated cooler…UE
L-shaped model replacing the captain's chair and table…UE
Grey interior upholstery replacing the standard upholstery…free upgrade
Option group
Mood Package including bow rectangle snack table, glove box, wireless cell phone charger and smoked windscreen
Floor covering
Select beige / grey vinyl floor covering (teak supreme solid)…UE
Select grey / white vinyl floor covering (daintree 2)…UE
Propulsion and autonomy
Tilt steering mechanism and slider for driver seat…UE
SeaStar
®
hydraulic steering with tilt wheel and slider for captain's chair...UE (included with 150 HP engine and up)
Mercury
®
power steering with tilt wheel and driver seat slider (for 175, 200 & 225 HP V6 only)…UE
Additional battery bank system including charger (ProSport 6) and battery switch (175 HP)
Comfort and entertainment
Removable ski pylon
2 pontoon rail boat fender hangers
Pop-up privacy enclosure
Head Package including holding tank with a pump out system (9.8 l/ 2.6 U.S. gal.) and a pop-up privacy enclosure
Deluxe driver seat replacing the standard seat - Standard uphosltery…UE
Deluxe driver seat replacing the standard seat - Optional grey uphosltery…UE
Deluxe passenger seat replacing the standard passenger seat with swivel - Standard upholstery…UE
Deluxe passenger seat replacing the standard passenger seat with swivel - Optional grey upholstery…UE

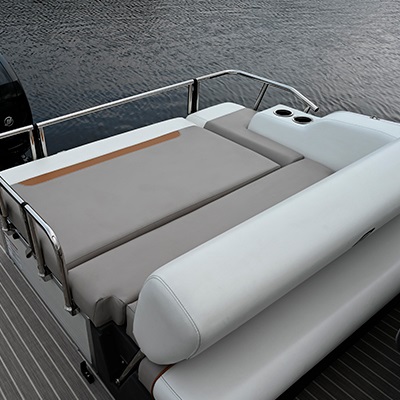

Safety railing on the rear seat
Bow grey pedestal mount removable table with cup holders
Console and electronic
200-watt AM/FM/Bluetooth Kicker
®
KMC 100 Stereo in console with 6 speakers…UE
Sonar Humminbird
®
PiranhaMAX 4
Sonar Humminbird
®
Helix 5 chirp GPS G3 with RAM mount (the bathymetric depth maps are not included)
Sonar/ GPS Humminbird
®
Helix 7 G4 with RAM mount (the bathymetric depth maps are not included)
Sonar Lowrance
®
Eagle
®
4X
Sonar Lowrance
®
Eagle
®
7 Splitshot (the bathymetric depth maps are not included)
Sonar / GPS Lowrance
®
Elite FS 7 (the bathymetric depth maps are not included)
Multifunction Simrad
®
NSX7 screen replacing the standard gauges (the bathymetric depth maps are not included)…UE
Active trim: automatic trim system
LED lighting on tubes
Tops and canvas
Electric bimini (black) (full camper top not available)…UE
Protective cover (black)
Protective cover (grey)
Protective cover (black) for pontoon equipped with the electric bimini option
Double bimini top including stern bimini canvas and rear extension (black)
Double bimini top including stern bimini canvas and rear extension (grey)
Full camper enclosure including stern bimini canvas (black)
Full camper enclosure including stern bimini canvas (grey)
Rigid supports for bimini top
Sun top with bimini canvas (black) - replacing the standard grey bimini…free exchange
Miscellaneous
Stainless steel propeller model Enertia 15,3 x 14 (for Speed & Sport configuration with 150 HP only)…UE
Stainless steel propeller model Enertia 15,6 x 13 (for Performance configuration and 150 HP)…UE
Battery switch: onboard power shut down (Forced with 200 & up)
Trailers
Conversion kit for 3-log models
Galvanized spare wheel 5.30 x 12" C with 5 lugs and bracket
ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
